4.4 Spheres

Sphere:

A sphere is a set of points in space that are a fixed distance from a given point called the center of the sphere.
A radius of a sphere is a segment whose
endpoints are the center of the sphere and any point on the sphere.

How to create a sphere in Geogebra:

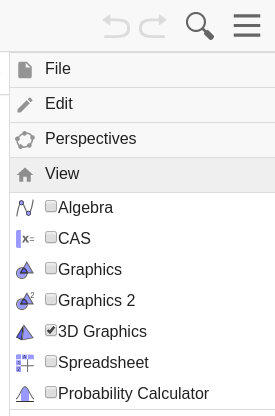

Set-up Geogebra for 3D mode:

Click on
Select
Check the box for
Uncheck the box for &

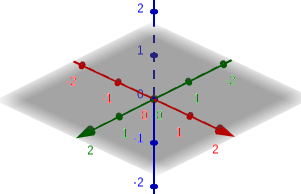

You should now see the 3D Grid
To turn off the grey plan click on
Click on then select the 2nd axis "white plane"
Now you will see

To create a sphere in Geogebra:

Use the "Point on Object" tool to place a Black point at the intersection of all 3 - axises.
Use the "Point on Object" tool to place a point on each axis at "5".
Make sure to color each point the same as the axis it is on.
Use the "Circle with Axis through Point" tool to make a circle around each axis. Do the following in order given:

     - click on the Blue axis then the Red point,
     - click on the Green axis then the Blue point,
     - click on the Red axis then the Green point,
Use the "Sphere: Center & Point" tool to make a sphere, click on the
: Black point 1st, and the either the Blue, Red, or Green point.

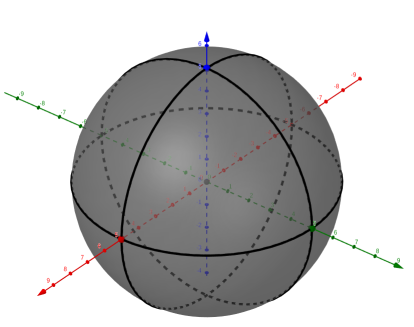

Change the color of the sphere to grey, and you should see →

NOTE: You can save anything you create in Geogebra to your computer by:

Clicking on then next

and select "ggb" then "save"

You will now see the "Save file as:" window. You can now change the name of the file ( I suggest calling it "sphere" ) and select the folder you want to save it in ( I suggest you save it in your Google Dirve→Classroom→Geometry folder.

Try This...

Task:

Use Geogebra to create scale model of the earth, with a point at Newfolden ( 48.356° N )

Solution:

Step:
1. Put Geogebra in 3D mode, only showing the
     X, Y, & Z Axis.
2. Create Point A at the origin, intersection
      of the X, Y, & Z Axis.
3. Create Sphere with center A and
      radius = 3.959. Average radius of the
      earth is 3,958.8 miles.
4. Create Intersection Points B & C, with the
      Sphere and the X-Axis..
     - Select Intersection
     - Click the Sphere
     - Click the X-Axis
5. Create Point C¹, Caption = Newfolden
     - Select Rotate around Line, 3rd from end
     - Click Point C
     - Click the Y-Axis
     - Rotation angle = 48.356° , counterclockwise
     - Caption this point as Newfolden
6. Create Ray AC¹,"Newfolden"
7. Create Intersection Points D, E, F, & G,
      with the Sphere and the Y & Z-Axis..
     - Select Intersection
     - Click the Sphere
     - Click the Y-Axis, for Points D & E
     - Click the Z-Axis, for Points F & G
8. Create a Circle through 3-Points, for each axis
     - Click points B, G, & C
     - Click points B, D, & C
     - Click points E, G, & D
9. Save this to your computer!


You now have a scale model of the earth, with a point at Newfolden ( 48.356° N )

Press

to run the Geogebra build simulation.

Watch the video:

Intersections & Circles:

The are two types of intersections that can occur with a sphere and a plane. A plane will either intersect a sphere at a point or a circle. A plane can intersect ( cut-through ) a plane and the intersection will create a Circle. If the plane intersects the sphere and the center of the sphere we get a Great Circle. If the plane intersects the sphere at a point, the plane will be tangent to the sphere at that point.

Intersection: Circle

Called a Small Circle

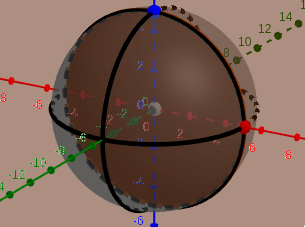

Intersection: Great Circle

Divides a sphere in two Hemispheres
Great Circle has the same radius as the sphere.
Great Circle contains the center of the sphere

Intersection: Point

Plane is tangent to the sphere
Think of a ball on the floor

Use this Geogebra app to see the interaction when a Plane intersects a Sphere

Example A

Problem:

Calculate the circumference of the Earth with out a calculator!

Impossible you say, well....

Solution:

Eratosthenes ( 276 - 194 BC ) calculated the Earth's circumference while living in Alexandria Egypt. At the time he knew that at local noon on the summer solstice in Syene (modern Aswan, Egypt), the Sun was directly overhead. He then measured the Sun's angle of elevation at noon in Alexandria by using a vertical rod, known as a gnomon, and measuring the length of its shadow on the ground. Using the length of the rod, and the length of the shadow, as the legs of a triangle, he calculated the angle of the Sun's rays. This turned out to be about 7.2°.

Eratosthenes assumed the Earth to be spherical, and knowing both the distance and direction of Syene from Alexandria, due North about 5,000 stadia ( it is believed that 1 stadia is about 517 ft ). His calculations imply that the circumference of the Earth is about 24,500 mi.

Today, with accurate measurements taken from space, we know that the circumference of a North - South Great Circle is about 24,860 miles and that the circumference at the Equator is about 24,900 miles. The circumference of the Earth estimated by Eratosthenes was with in 2% of the actual circumference of the Earth.

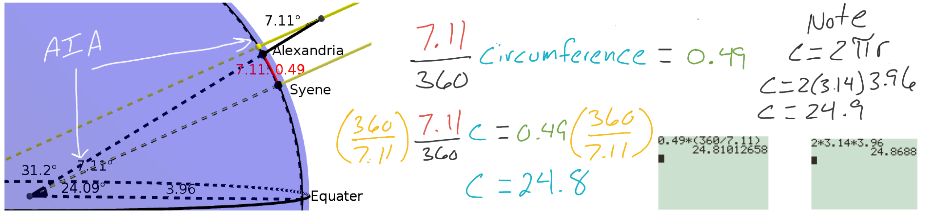

If we were to use Geogebra to try and do the same thing, we would need to know the latitude of of both
Alexandria ( 31.200° ) and Seyene ( 24.089° )

Watch the video:

Gnomon:

Example B

Question:

If an astronaut on the International Space Station looks out of a window at the Earth, how much of the Earth do they see?

Since there is nothing obstructing a person's sight between the ISS and the Earth, we can use a line of sight coming from the ISS that will be tangent to the Earth.

Commander Chris Hadfield, CSA & NASA

Watch the video:

International Space Station ( ISS )

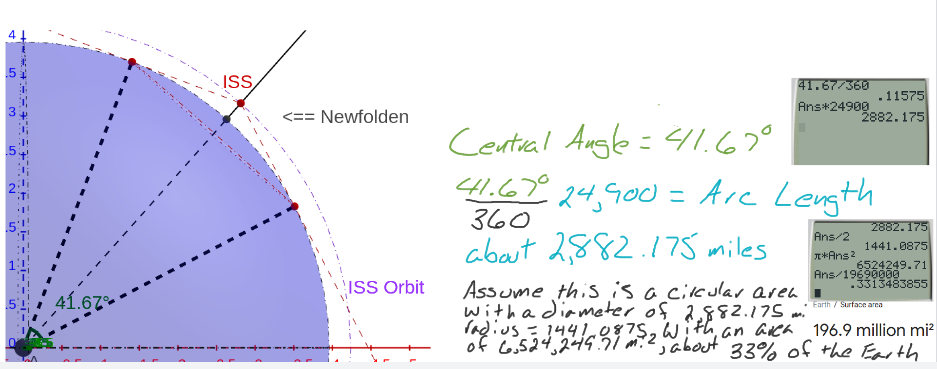

Solution:

To begin with, we will need to make an assumption and have some more information. 1st, let us assume that the ISS will be directly overhead of Newfolden. 2nd, we already know that the circumference of the Earth is about 24,900 miles, using this information we can find the radius of the Earth.

Now we know that the radius of the Earth is about 3,965 miles. Next we need to know the distance of the ISS from the earth. This NASA link has all of the information we need:

https://eol.jsc.nasa.gov/ESRS/HDEV/. & I.S.S. Tracker

Scroll down to the ISS Tracker ( select "Imperial" rather than "Metric" ) and we can see that the ISS is orbiting at an altitude of about 271 miles. Lastly, Newfolden is at a latitude of 48.355° N.

Lets model this situation using Geogebra! By the way, remember that the Area of a Circle = (3.14)radius².

Example C

Question:

Starlink, https://www.starlink.com/, is a constellation of internet satellites being constructed and launched by SpaceX. Each satellite is about the size of a kitchen table and weighs about 500 lbs. The satellites will be in a Low Earth Orbit ( LEO ) at an altitude of 341.7 miles above the earth.

So, how big of an area can a satellite cover for internet service?

Watch the video:

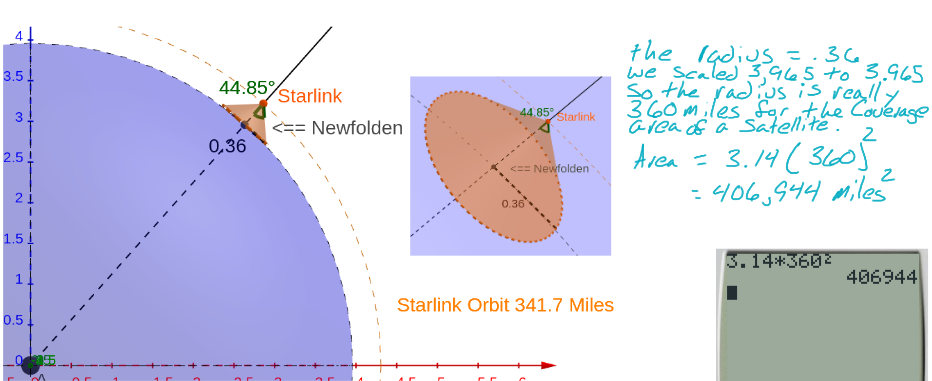

Solution:

Again, we will need some more information and assume that a satellite is directly over Newfolden. However,we can not assume that the satellite can broadcast a signal that will be tangent to the Earth. In fact, the initial angle of coverage will be 44.85° from a radius of the Earth for a total beam angle of 89.7°. Now we have enough information to model this situation using Geogebra!

Practice Problems

Use the following Geogebra app to help answer the question. Remember you can download the app and use it.

A. Use the following information to determine how much of the earth could be see from Skylab
      if they were directly over head of Newfolden..

      Skylab was the first United States space station, launched by NASA, occupied for about
      24 weeks between May 1973 and February 1974. Major operations included an orbital
      workshop, a solar observatory, Earth observation, and hundreds of experiments. It spent
      six years orbiting Earth until its decaying orbit caused it to re-enter the atmosphere. It
      scattered debris over the Indian Ocean and sparsely settled areas of Western Australia.

      Orbital height = 275 miles

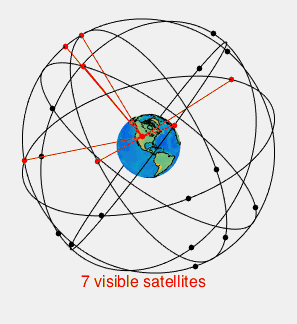

B. The satellites in the GPS system are arranged into a constellation, as pictured on the right.
Each satellite has an orbit of about 12,550 miles and has total beam angle of about 28°.

How big of an area does each satellite cover?

Assignment:

1. Another feature of the Starlink satellite is that the signal beam can be adjusted. After the Starlink satellite constellation has been fully deployed, the beam angle will be increased to a total of 113.1°. How many square miles will a satellite cover now?
2. The Apollo–Soyuz Test Project (ASTP) conducted in July 1975, was the first joint U.S.–Soviet space flight. The ASTP involved the docking of an Apollo command and service module and the Soviet Soyuz 19 capsule This mission marked the end of the Space Race that had begun with the launch of Sputnik in 1957. When the two spacecrafts docked, they were orbiting at an altitude of 144 miles. What percent of the Earth could be seen when the astronauts looked out of the window?

3. If the United States has an area of approximately 3.797 million square miles, how many Starlink satellites will be needed at full deployment to cover the United States.

4. STS-1 (Space Transportation System-1) was the first orbital spaceflight of NASA's Space Shuttle program. The first orbiter, Columbia, launched on 12 April 1981 and returned on 14 April, 54.5 hours later, having orbited the Earth 36 times at an average orbital altitude of 162 miles. If you were in the shuttle bay and looked up, you would actually be looking down at the Earth. How many square miles of the earth would you be looking at?
